High Temperature Resistant Soft Robotic Finger For Metallurgical Industry

Name: High Temperature Resistant Soft Robotic Finger For Metallurgical Industry
Brand: Soft Robot Gripper
Price: 1 USD

Brand Name : Soft Robot Gripper

Model Number : M3028

Certification : FDA CE ISO

Place of Origin : Beijing,China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : Negotiation

Delivery Time : 2-3 work days

Packaging Details : Carton Package

Weight : 54g

Application : Automobile industry, foodindustry, 3C, medical

Contact Now

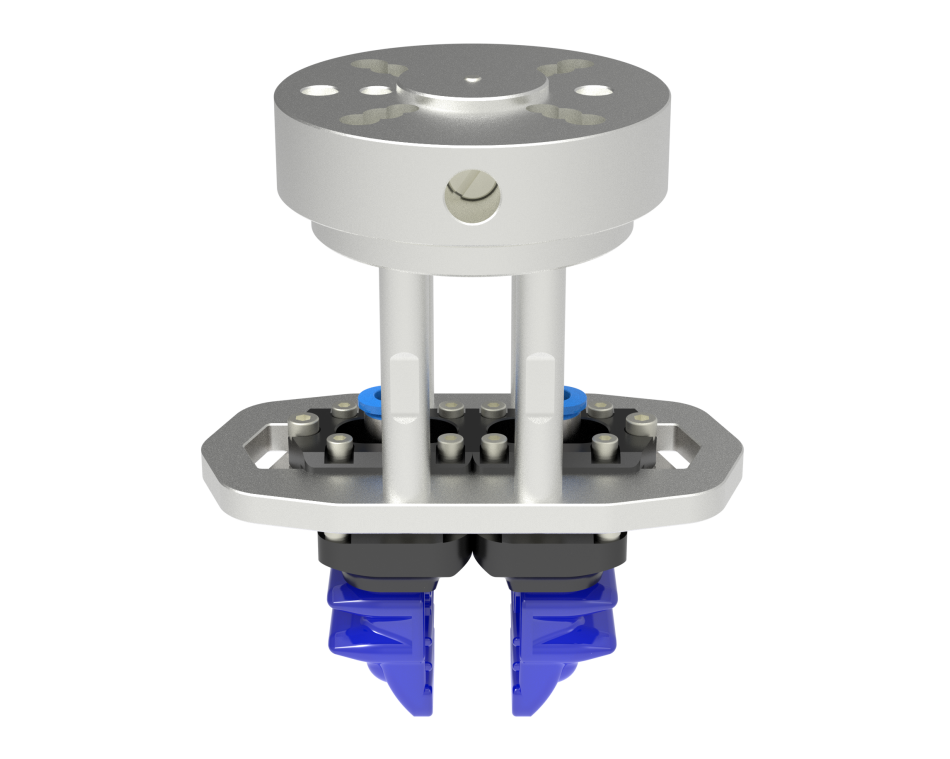

M3028+ High temperature resistant + soft robot finger

Soft robot fingers for flexible operation at temperatures up to 400 degrees Celsius

There are often shaped workpieces with extremely high surface temperatures in the glass, ceramic and metallurgical industries. The automated handling of such workpieces is a tricky challenge.Soft robot fingers can be perfectly flexible and at the same time have a high temperature resistance. The finger modules are made of a multi-layer insulating material with a composite process that insulates the surface of the workpiece from high temperatures, making them perfect for automated handling of high temperature workpieces!

W/mm		30
L/mm		28
Ln/mm		43
T/mm		18.5
X/mm		7.7
A/mm		38
B/mm		26.5
C/mm		37.1
Smax/mm		8
Ymax/mm		7.8
weight/g		54
fingertip thrust/N		3.7
load coefficient of individual finger/g	vertical	200
	pack	260
working speed/cpm		≤110
product life/bout		≥300W
working pressure		-100～100kPa
Connection diameter		6mm
