Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Name: Robotic Clamp Compact GripperSFGFMA6M5086
Brand: Robotic Clamp
Price: 1 USD

China Robotic Clamp -Compact Gripper-SFG-FMA6-M5086 wholesale

Brand Name : Robotic Clamp

Model Number : Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Certification : FDA CE ISO

Place of Origin : Beijing,China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : Depending on the order quantity

Delivery Time : 2-3 work days

Packaging Details : Carton Package

Name : Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Load : 4500g

Smax : 42mm

Weight : 1356g

Contact Now

Robotic Clamp - Compact Gripper-SFG-FMA6-M5086

Product Description

Different with rigid structure of traditional jaws, soft flexible gripper has soft pneumatic “finger”, which can cover the target object self-adaptively, and it doesn’t need to be pre-adjusted according to the accurate size and shape of the workpiece, which can get rid of the constraint of the traditional assembly requirements that the object size should be uniform.

Parameter

Model

Dimensions(mm)

Gripping Capacity

Smax

Ymax

Dn+2Smax

(mm)

SFG-FMA6-M5086

173.4

168.7

52-100

63.5

107

63.3

52-210

Features / Advantage

Standard working lifespan: ≥3,000,000 times

Load: 4200g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 1356g

Product Detail

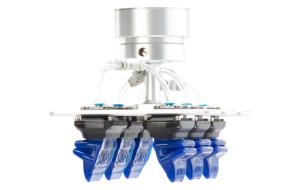

Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Robotic Clamp -Compact Gripper-SFG-FMA6-M5086 Images
